RH-CRH series

Compact arm for space saving and Light weight robot arm

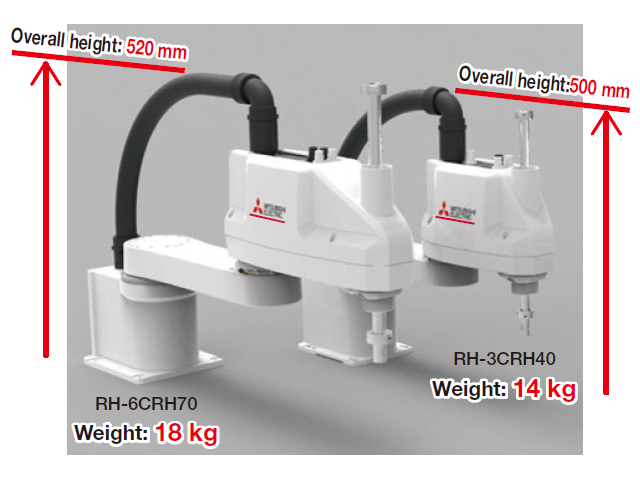

• Compact arm for space saving
  (Maximum height RH-3CRH:500mm/RH-6CRH:520mm)
• Light weight robot arms
  (RH-3CRH:14kg/RH-6CRH6020:17kg/RH-6CRH7020:18kg)
• Maximum load capacity:3kg,6kg
• Controller types: Standalone controller (CR800-D controller)

Please refer to the “Catalog” or the “Manuals” for RH-CRH series. Manual download page

High-speed operation and high performance for productivity

• Standard specifications: 32 input points and 32 output points.
  In addition to the robot axes, up to eight additional axes can be controlled.

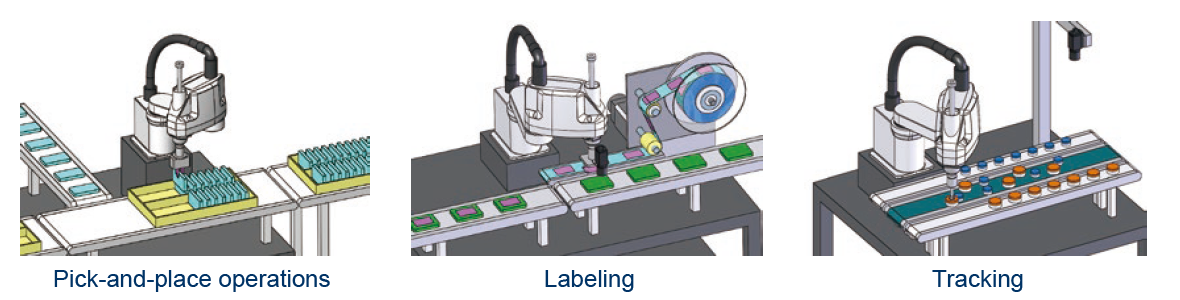

• The tracking function is supported as standard.
• CC-Link IE Field Basic as standard.

Intelligent functions supported by MELFA Smart Plus

The function expansion option named “MELFA Smart Plus” is available with MELFA RH-CRH series.
“MELFA Smart Plus” further broaden the range of possibilities of the MELFA RH-CRH series, offering performance beyond your expectations. Details of MELFA Smart Plus

Significantly reducing the startup time at worksites where robots are installed

The controller has been changed from CR751 to CR800.
The memory function mounted on the internal circuit board eliminated the need to input origin data at startup.
